Headphone amp PP ECC84 + QQE03/12

Main page

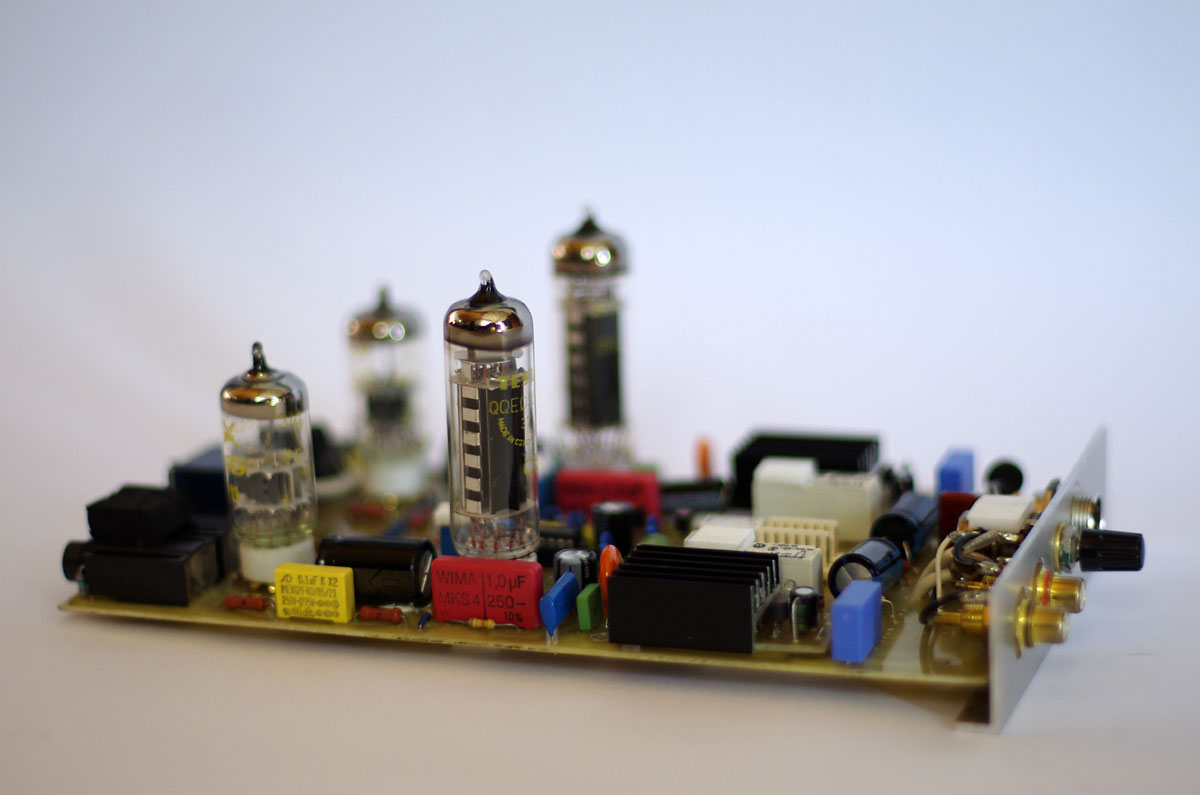

Headphone amp QQE03/12 - mainboard
Headphone QQE03/12 mainboard

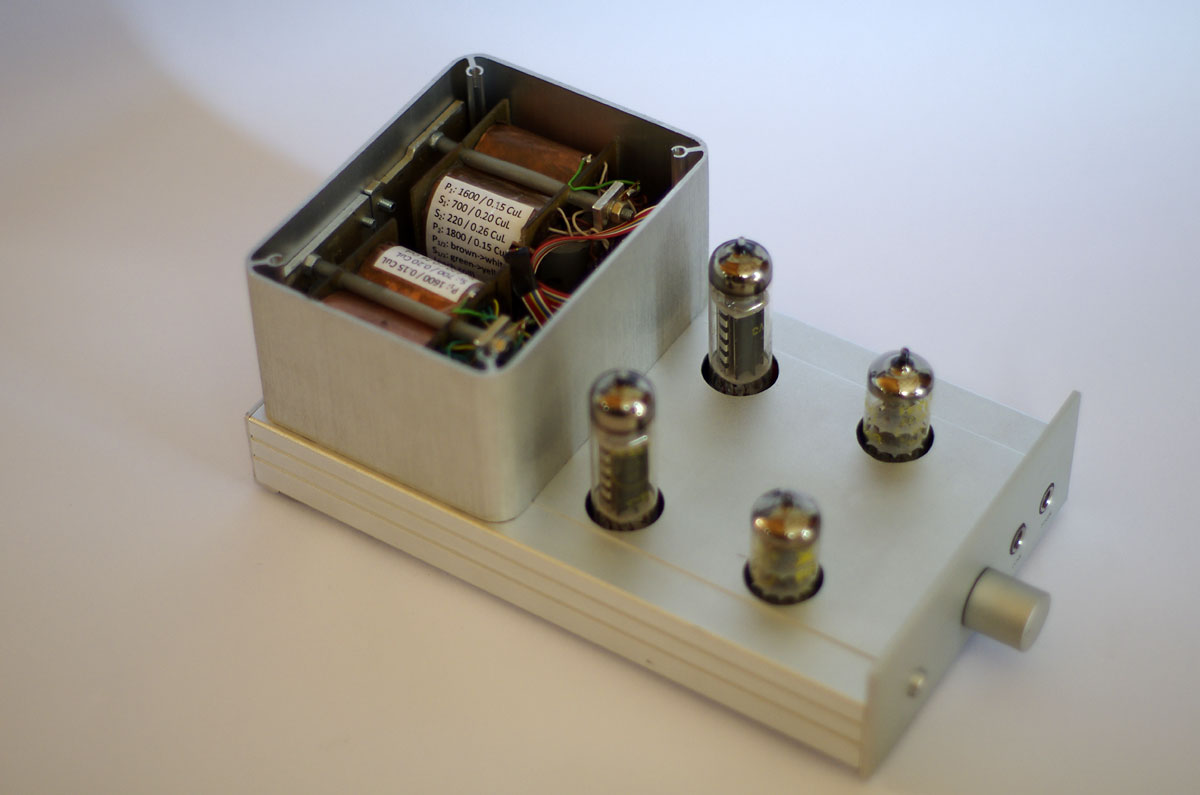

 Headphone amp QQE03/12 - open case
Headphone QQE03/12 open case

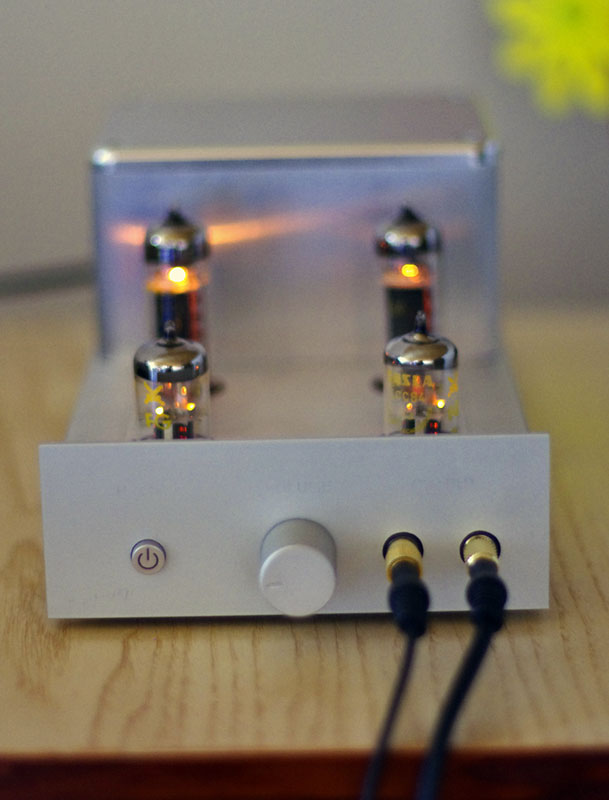

 Headphone amp QQE03/12 - front view
Headphone QQE03/12 front view
 Headphone amp QQE03/12
Headphone QQE04/12

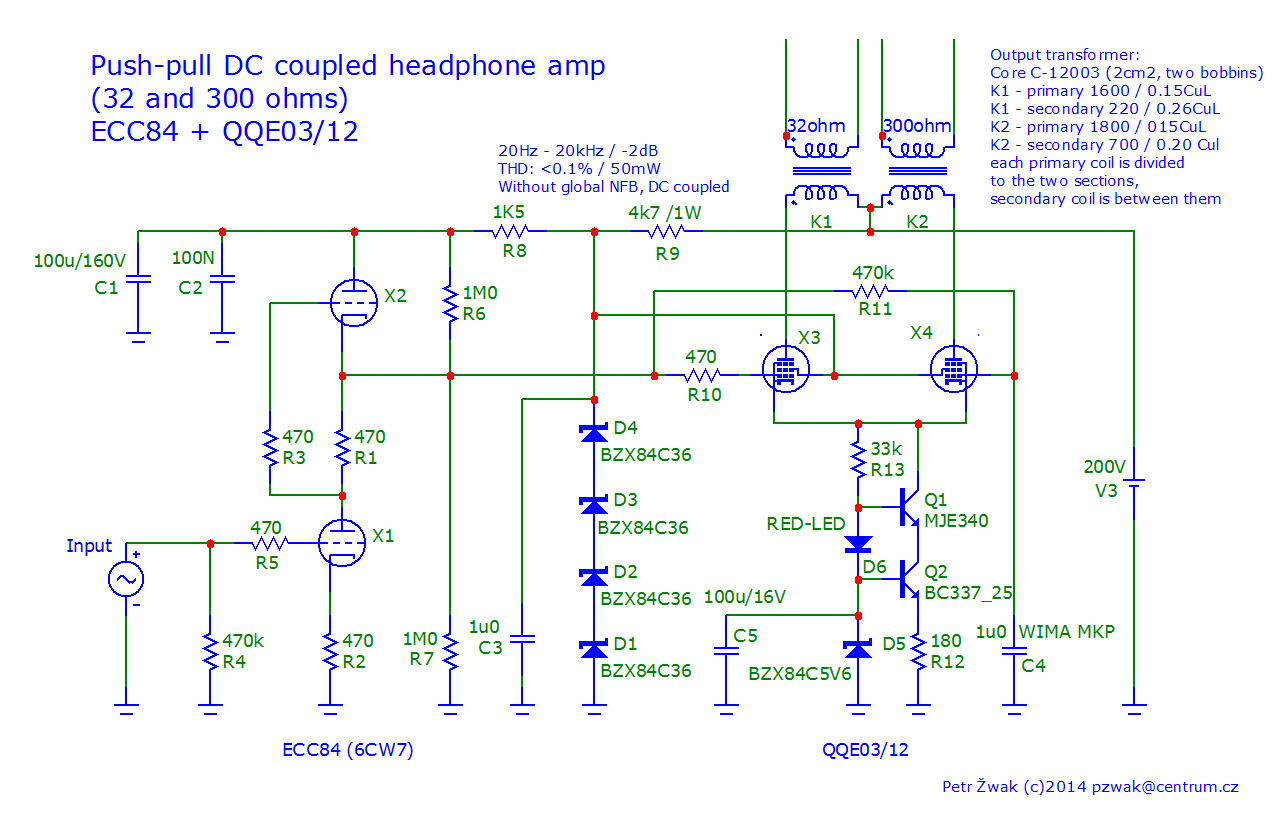

Headphone amp QQE03/12 - schematic diagram
Headphone QQE03/12 sch. diagram
pzwak@centrum.cz
Created by Petr Zwak. All photos are copyrighted.
